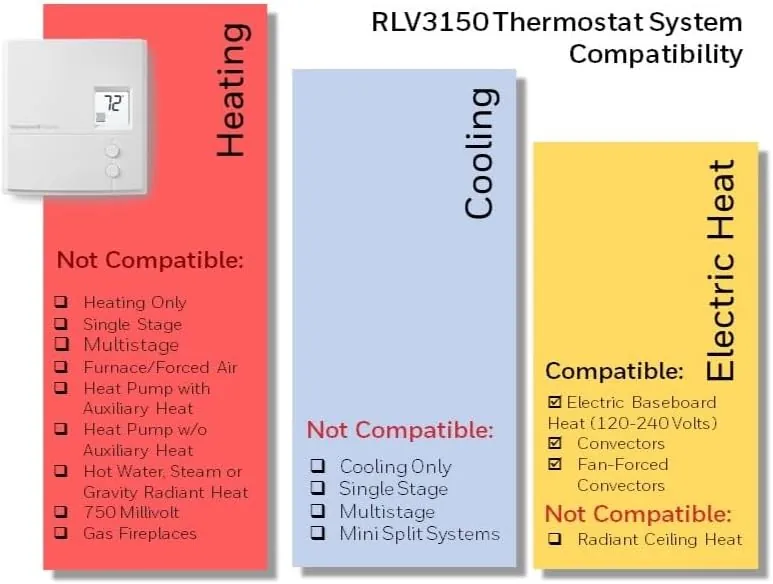

Will it work with your system?
Works well with
- Baseboard and wall heaters
- Room-by-room electric heat
Check first if you have
- Furnaces, boilers and heat pumps (24 V)
- Loads above its rating
What it controls
The Honeywell Home RLV3150A1004/E Line-Voltage Thermostat is a line-voltage for electric heat that runs at line voltage (120 V per the maker).
Its maker rates it for 3,000 W. At 120 V that covers heaters totalling about 3,000 watts (watts = amps × volts). Check your heaters' load.
Connectivity: Wi-Fi, so the schedule and setpoint can be changed from a phone.
Line voltage can kill: switch the breaker off and confirm it's dead before touching the wires, and use a licensed electrician if you're unsure. Line vs low voltage.
Also on the listing: a weight of 12 ounces and a digital.
Compatibility and specs
These come from the maker's listing for this exact model; the source of each is marked. Anything the maker leaves out is marked not stated.
| Model number | RLV3150A1004/E | Retailer |
|---|---|---|
| Model name | RLV3150A | Retailer |
| Works with | Push Button | Retailer |
| Features (seller) | Temperature Display | Retailer |
| Connectivity | Wi-Fi | Retailer |
| Power | Electric | Retailer |
| Voltage | 120 V | Retailer |
| Display | Digital | Retailer |
| Mounting / installation | Ceiling Mount | Retailer |
| Max load | 3000 W | Retailer |
| Material | Plastic | Retailer |
| Product weight | 12 ounces | Retailer |
| Schedule | Non-Programmable | Retailer |
Strong points and weak points
Strong points
- Rated 3,000 W
- Wi-Fi control
- 120 V
Weak points
- Household-voltage wiring
- One thermostat per heater circuit
Wiring and install notes
- Compatibility statements are the maker's own. Confirm with the maker's compatibility checker, turn the power off before wiring, and leave line-voltage and furnace work to a licensed electrician or HVAC technician.
Thermostats to compare it with
FAQ
How many heaters can the Honeywell Home RLV3150A1004/E Line-Voltage Thermostat control?
Can the Honeywell Home RLV3150A1004/E Line-Voltage Thermostat run a furnace or heat pump?
Other line-voltage thermostats with similar wiring
- Fahrenheat FTA2A Line-Voltage Thermostat
- Honeywell Home YRLV4300A1014 Line-Voltage Thermostat
- Honeywell Home RLV4305A1000/E1 Line-Voltage Thermostat
- Aube TH106 Line-Voltage Thermostat
All line-voltage thermostats in one grid · Every Honeywell Home control listed
Our take
Shortlist it for baseboard and wall heaters.
